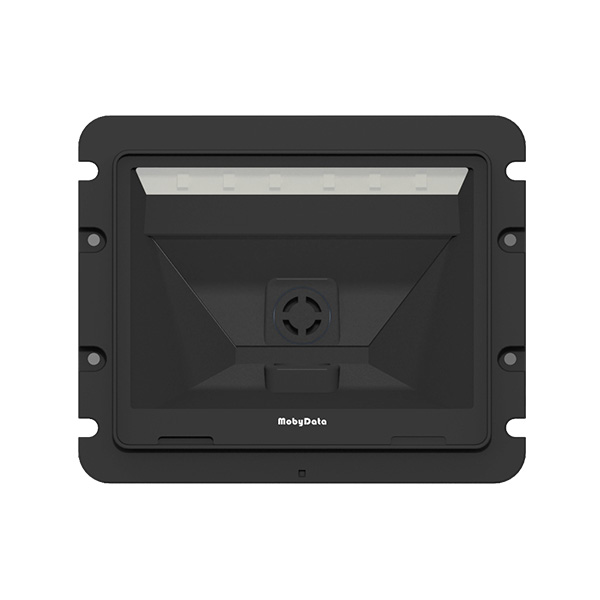

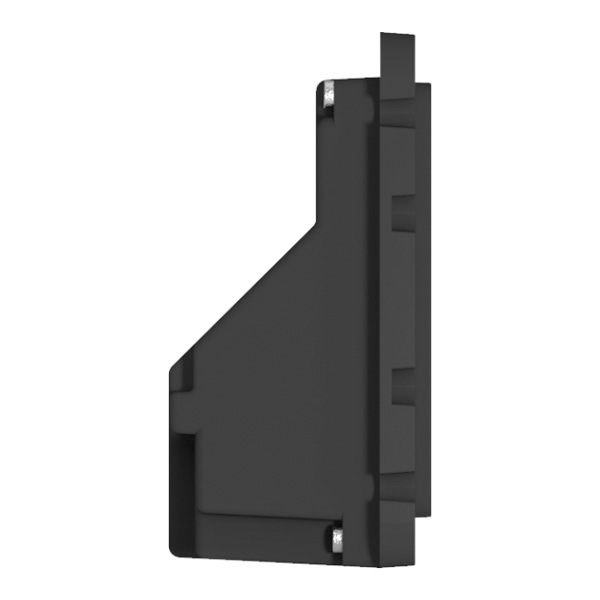

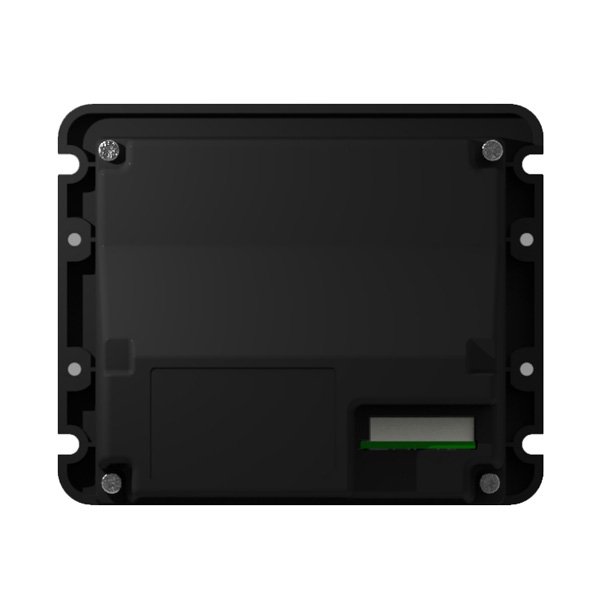

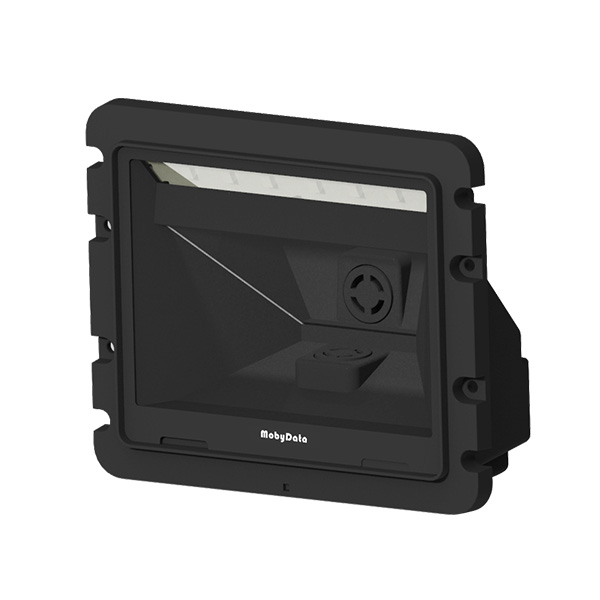

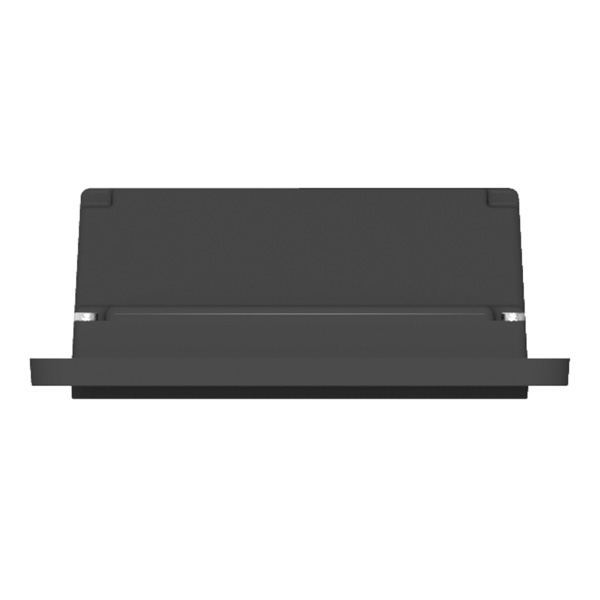

ES5500 Single Window Barcode Scanner

Authorized decoding libraries by Datalogic

Commercial embedded scanning equipmen

a) Medium window, thin size design

b) Large reading field of vision

c) Fast sensing, sensitive recognition and reading

d) IP52 protection, reliable and durable

e) Multiple status light indicator, built-in buzzer

f) Support OCR, OPOS, JPOS



Product specification

Physical Specifications
Dimension113x93x45mm
Weight136g
Electrical
Current344mA (RMS) 486mA (MAX)
Input Voltage5V ±5%
Input and output interfacesUSB、RS232
ESD2KV
Performance Parameter
Sensor Resolution1280x800
IlluminationWhite LED
Motion tolerance2.5 m/s
FOV70°D x 60°H x 41°V
Min Resolution
4mil(1D)
Reading IndicatorsBeeper, LED indicating lamp
Scan AnglesPitch: ±60°; Roll: ±180°; Yaw: ±70°
Environmental Specifications
Operation Temperature-20 to 50 °C
Storage Temperature-40 to 70 °C
Symbologies
2D Codes UCC Composite;Aztec;China Sensible Code;Datamatrix;DotCode;
QRCode;Micro QRCode;OCR Code
1D / Linear CodesCode EAN/UPC;GS1DataBar(RSS-14);Code39;Code 128(GS1-128);
Code ISBT 128;Code Standard 2of5;Compressed 2of5;Datalogic 2of5;
Industrial 2of5;Interleaved 2of5 (l2of5);Matrix 2of5;Codabar;Code11
Code93;MSI;Plessey;BC412;ISSN
Postal CodesAustralian Post; British Post; China Post; IMB; Japanese Post;
KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code
Stacked CodesEAN/JAN Composites; GS1 DataBar Composites;
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional; MacroPDF;
MicroPDF417; PDF417; UPC A/E Composites
DOF
EAN-13 13mil0 ~150mm
QR 15 mil0 ~100mm
