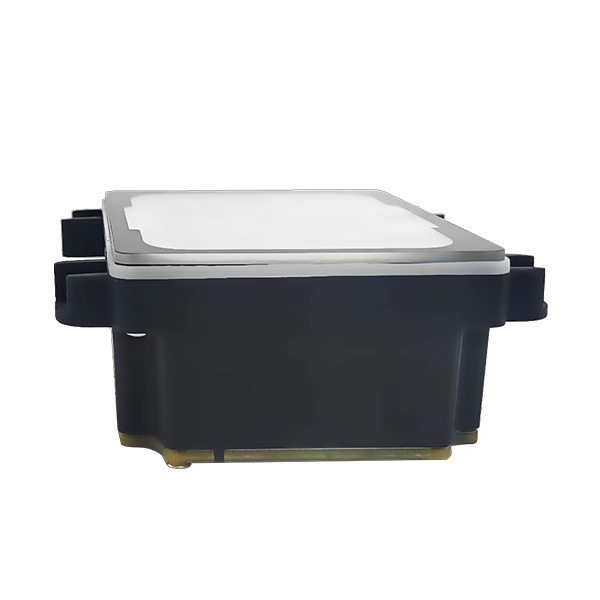

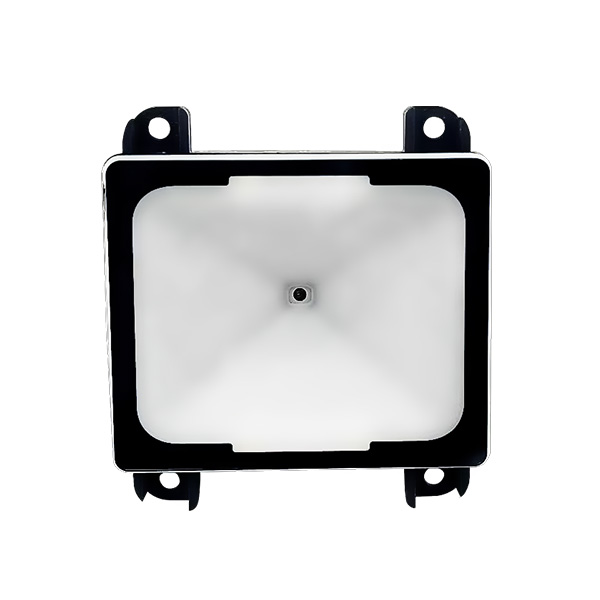

ES5000 Single Window Barcode Scanner

Authorized decoding libraries by Datalogic
Commercial embedded scanning equipmen

a) Global shutter sensor, supports reading on-screen codes and paper codes
b) Small window and thin size, easy to integrate into small equipment
c) Ultra-full code recognition, supporting small codes, wrinkled codes,  damaged codes, and DPM codes
d) Wide FOV, automatic sensing, fast reading
e) Multiple interfaces, suitable for different industries

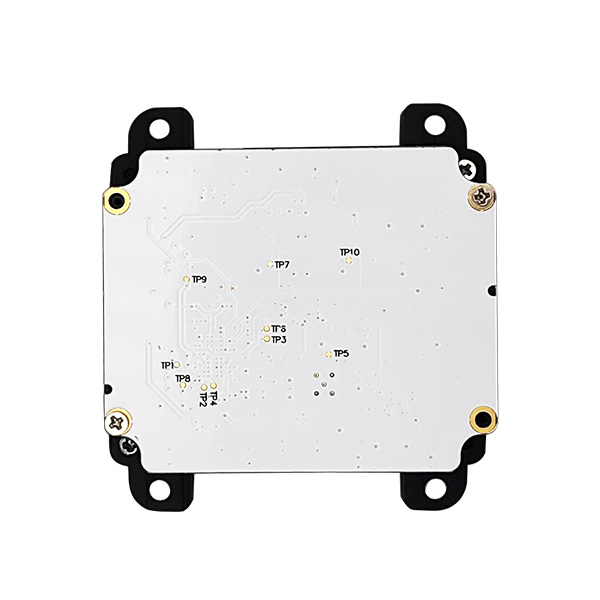

f) No device design on the back to avoid external damage
g) Support JPOS,OPOS, support passport OCR recognition



Product specification

ES5000 Technical Specifications
Physical Specifications
Weight26.2g；39g(Protective window)
Dimension65mmx61mmx28mm
Electrical
Input Voltage±5%（5-12 VDC)

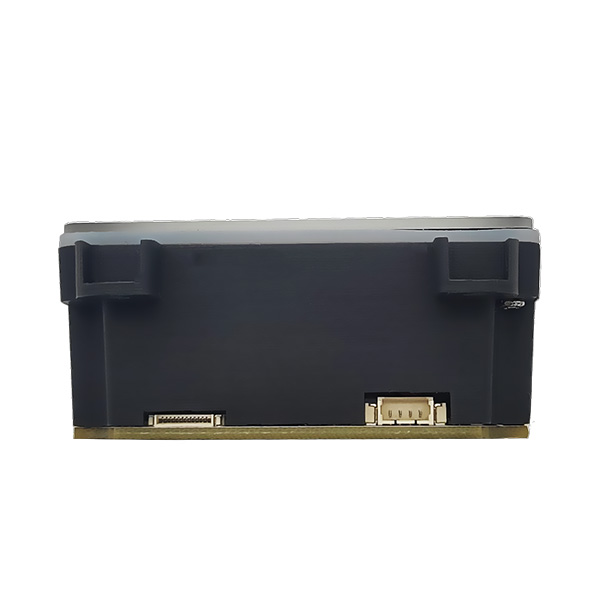

Input and output interfacesUSB、RS232/TTL
Current300mA（RMS） 430mA（MAX）
Performance Parameter
Sensor Resolution640x480
IlluminationWhite LED
FOV70°D x 60°H x 41°V
Motion tolerance2m/s
Min Resolution5mil（1D）
Reading IndicatorsBeeper, LED indicating lamp
Scan AnglesPitch: ±60°; Roll: ±360°; Yaw: ±60°
DOF
EAN-13 13mil5~110mm
PDF417 6.67mil0~50mm
QR 15 mil0~80mm
Environmental Specifications
IP Grade IP42
Earthquake resistanceTBD
Ambient Light100，000LUX
Operation Temperature-20~50℃
Storage Temperature-40~70℃
Humidity5%~95%
ESDAir ±8kv, Contact ±4kv
Symbologies
2D Codes UCC Composite;Aztec;China Sensible Code;Datamatrix;DotCode;
QRCode;Micro QRCode;OCR Code
1D / Linear CodesCode EAN/UPC;GS1DataBar(RSS-14);Code39;Code 128(GS1-128);
Code ISBT 128;Code Standard 2of5;Compressed 2of5;Datalogic 2of5;
Industrial 2of5;Interleaved 2of5 (l2of5);Matrix 2of5;Codabar;Code11
Code93;MSI;Plessey;BC412;ISSN
Postal CodesAustralian Post; British Post; China Post; IMB; Japanese Post;
KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code
Stacked CodesEAN/JAN Composites; GS1 DataBar Composites;
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional; MacroPDF;
MicroPDF417; PDF417; UPC A/E Composites
