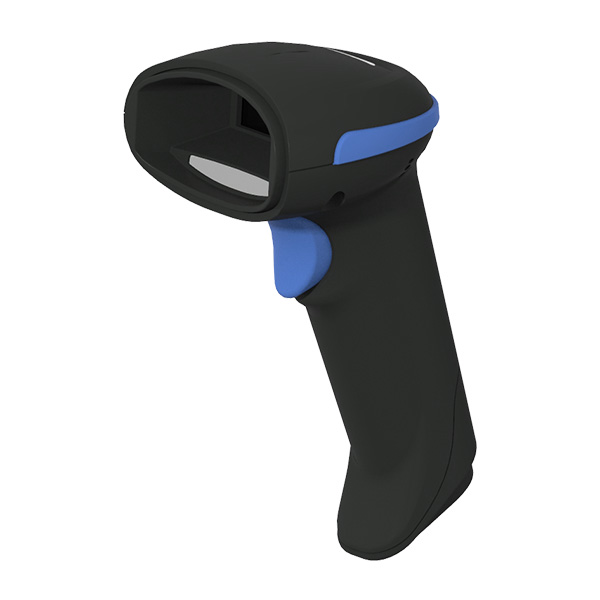

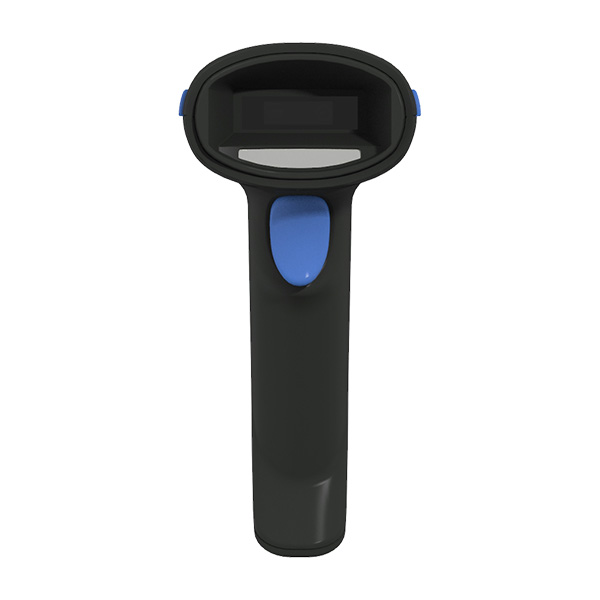

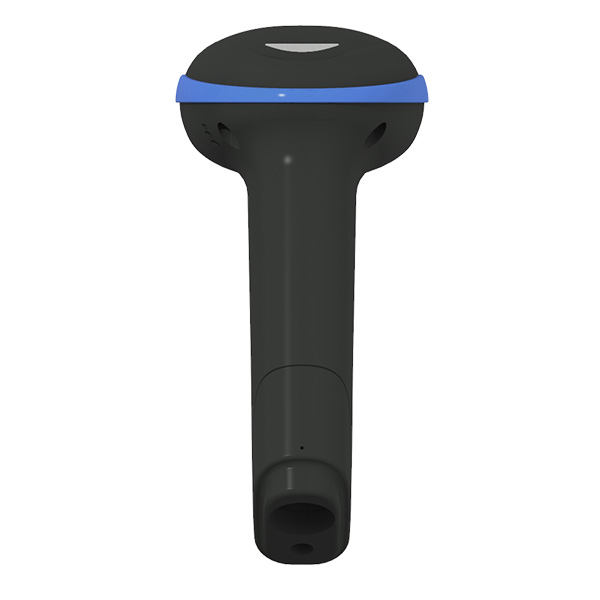

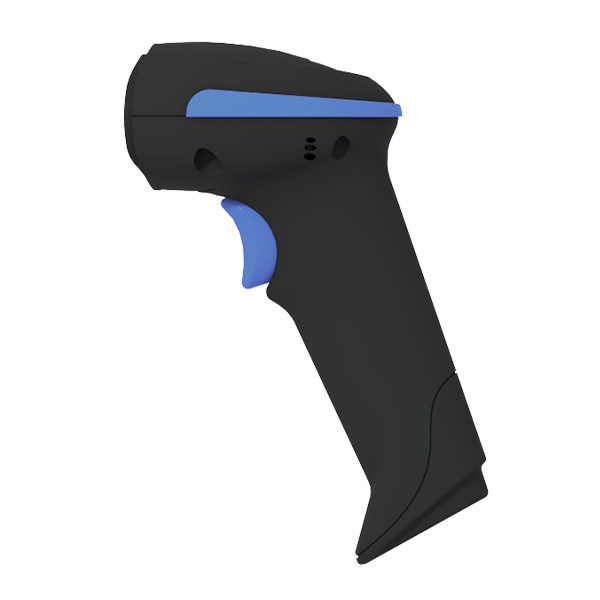

KS1000 Handheld Scanner

Authorized decoding libraries by Datalogic

Unique Product Characteristics

a) Low power consumption, excellent performance, and super cost-effective
b) Good at reading long barcodes, wrinkled barcodes, large QR codes and screen barcodes
c) Ergonomic, compact and lightweight, highly comfortable to use
d) IP42 protection level, 1.2m drop resistance, key life up to 3 million times



Product specification

Physical Specifications
Dimension 166mmx73mmx83mm
Weight105g
Electrical
ESD± 8 KV Air,，± 4 KV Contact
Input voltage5V
Input and output interfacesUSB，RS232，Key trigger
Environmental Specifications
Drop1.2m steel plate dropped
6000 times 10cm steel plate
slightly dropped
Tumble300hits, 0.5m, Steel
TemperatureOperating: -20 to 50 °C;
Storage: -40 to 70 °C
Humidity0-95%
Light Levels0 – 100,000 lux
IPIP42
Performance Parameter
Sensor resolution640*480
IlluminationWhite lighting
AimingLED
FOV57.6°(0) 46.6°(H) 36.8°(V)
Symbol Contrast25% minimum print contrast ratio
Scan AnglesPitch：±60°; Roll：360°; Yaw：±60°
Min Resolution3mil
Reading IndicatorsLED indicating lamp
Symbologies
2D Codes UCC Composite;Aztec;China Sensible Code;Datamatrix;DotCode;
QRCode;Micro QRCode;OCR Code
1D / Linear CodesCode EAN/UPC;GS1DataBar(RSS-14);Code39;Code 128(GS1-128);
Code ISBT 128;Code Standard 2of5;Compressed 2of5;Datalogic 2of5;
Industrial 2of5;Interleaved 2of5 (l2of5);Matrix 2of5;Codabar;Code11
Code93;MSI;Plessey;BC412;ISSN
Postal CodesAustralian Post; British Post; China Post; IMB; Japanese Post;
KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code
Stacked CodesEAN/JAN Composites; GS1 DataBar Composites;
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional; MacroPDF;
MicroPDF417; PDF417; UPC A/E Composites
DOF
Barcode
13 mil EAN13
15 mil QR		50 mm - 230 mm
30 mm - 130 mm
