a) 4G LTE global band, No dead corner
b) 802.11ac/a/b/g/n enterprise level independent Wi-Fi
c) Bluetooth 5.0, low power, long distance, perfect matching wireless printer
a) IP65 industrial protection
b) Optimized structure for battery to ensure slim form factor
a) New generation slim 2D imager scan engine
b) Support VGA and megapixel versions
c)Licensed Datalogic decoding technology
a) New generation Quad core or Octa core 2GHz processor, long life cycle
b) Support Android 9 and Android 10 upgrades
c) Large battery capacity but refined power consumption, 3 hours charging time but 15 hours working duration, 50 days standby duration.
d) Free to install AppLOCK, Easy Deploy and other system management software for efficient management and deployment

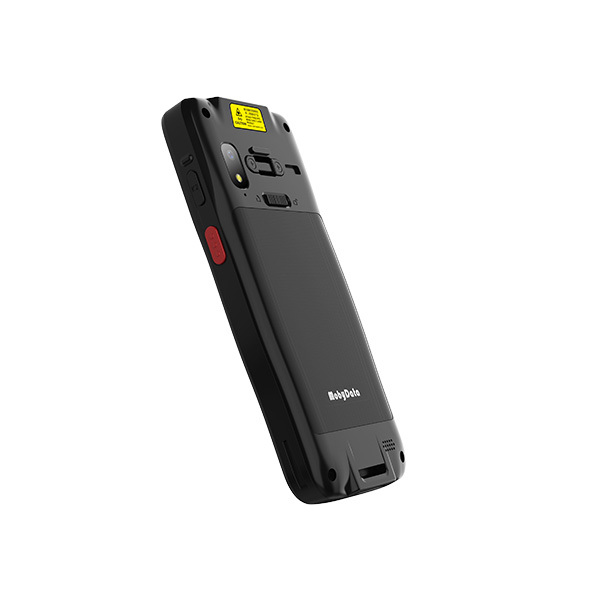

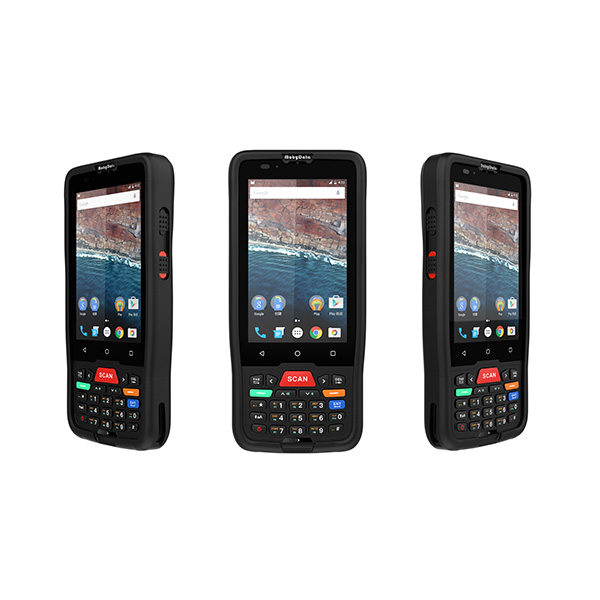

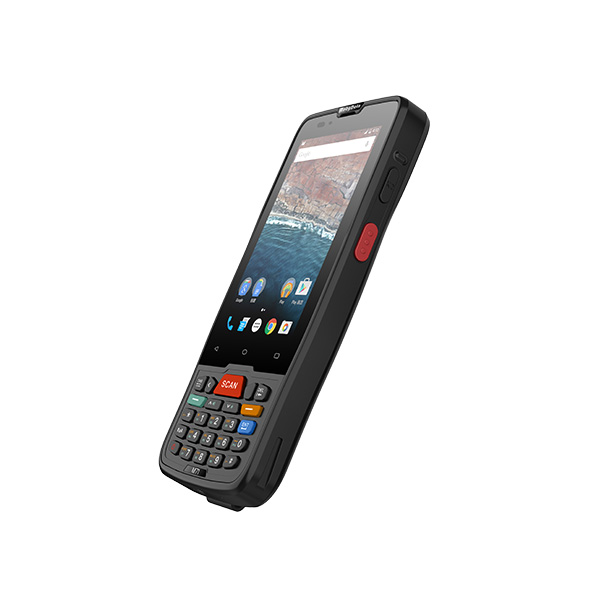

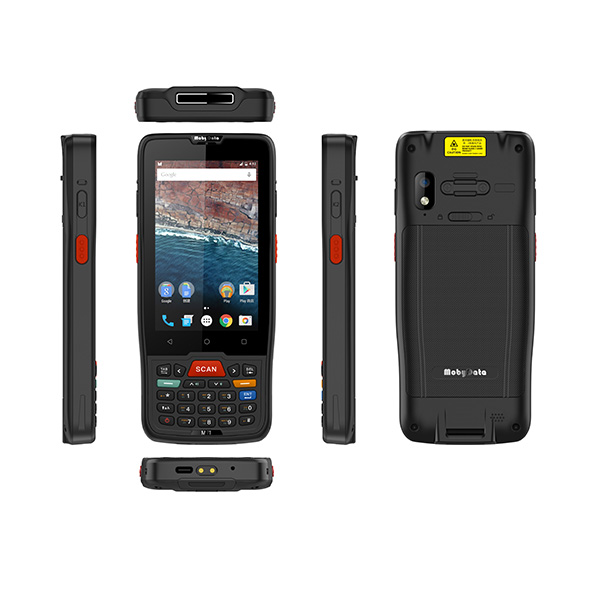

| M71 Specifications | |
| OS | Android 9 |
| CPU | 2GHz, Quad/Octa Core, 12nm |
| MEMORY | 2+16/3+32 |
| Extend Slot | MicroSD, support SDHC, up to 64GB; |
| One micro SIM connector | |
| PC Communication | USB 2.0 OTG : Type-C；Support TYPE-C Headset |
| Sensers | Light, Proximity, 3D G sensor, Hall |
| LED | Charging, Scan and System stauts |
| Charging Time | <3.5 hours(Room Temperature) |
| Operation Duration | 14 hours（Scan Every Nine Seconds,Connect WIFI,Insert SIM Card,The Screen Is Always On） |
| Wireless Connectivity | |
| WLAN | 802.11 ac/a/b/g/n |
| WWAN | TDD-LTE (B38/B39/B40/B41) |
| FDD-LTE (B1/B3/B7/B8) | |
| UMTS/HSDPA/HSPA/HSPA+ (900/2100 MHz) | |
| GSM/EDGE/GPRS (900/1800MHz) | |
| VoLTE | LTE CAT6 |
| CA | Downlink 300Mbps, B1/B3/B7/B40/B41 |
| WPAN | BT 5/BLE |
| GPS | GPS/A-GPS, GLONASS, Beidou ,Galileo |
| Physical Specifications | |
| LCD | 4 inch, 800*480, visible under sunshine |
| Touch | GFF Captive Touch, Dragontrail Glass |
| Camera | Auto focus 8Mega, with flash LED |
| Keypad | 24 Numeric Keypad |
| Left/Right Scan Key, Left/Right K1,K2 user-defined Key | |
| Back, HOME, Switch | |
| Reciver | Support |
| Speaker | Min 90db at 10cm-1KHz Voice |
| Mic | Noise Reduction Mic |
| Charging IO | USB type-C |
| Charging Pad | |
| Battery | Removable 3800mAh-4000mAh |
| Dimension | 160×71×17mm |
| Weight | 269g |
| Environmental Specifications | |
| Operation Temperature | -20°C ~ +50°C |
| Storage Temperature | -30°C ~ +70°C |
| Humidity | 10% ~ 90% |
| Drop | 1.5m, concrete, 12 drops |
| Tumble | 600hits, 0.5m, Steel |
| IP | IP65 |
| ESD | ±8kV Contact, ±15kV Air |
| Keypad lifecycle | 500K |
| Accessories | |

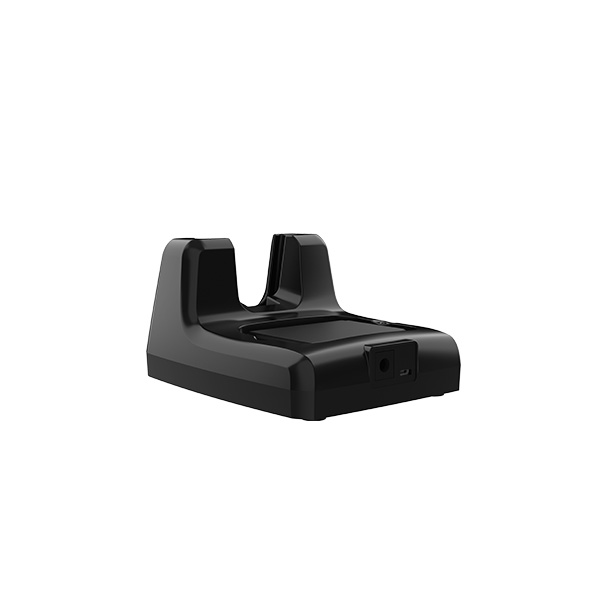

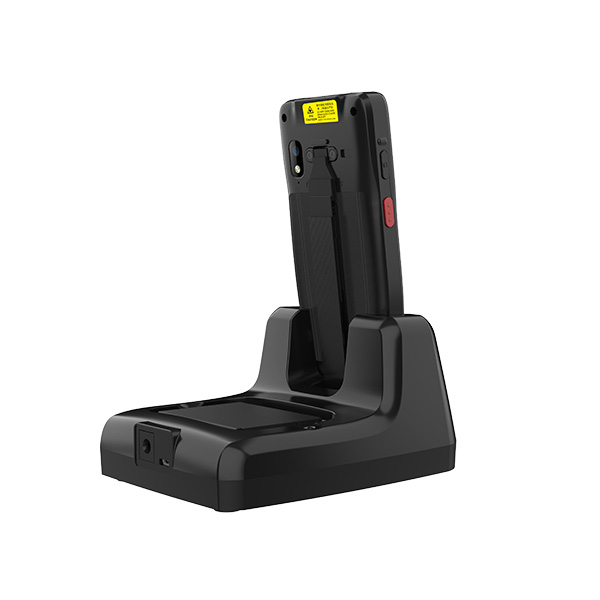

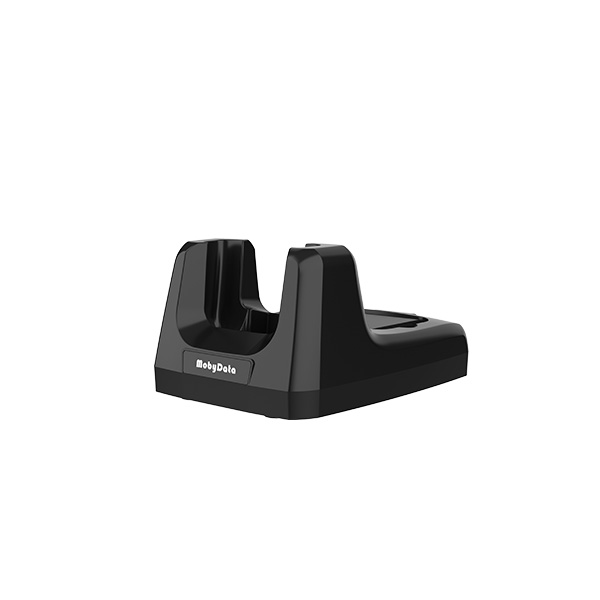

| Charging Cradle | Support 1 device and 1 battery |

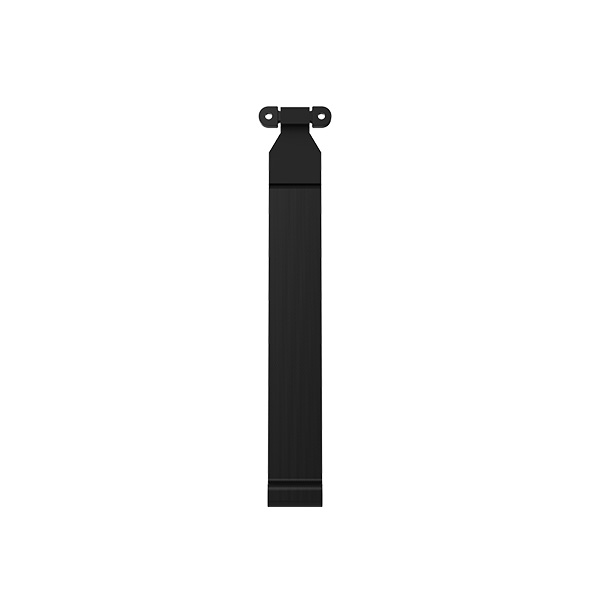

| Handstrap | Black, Nylon |

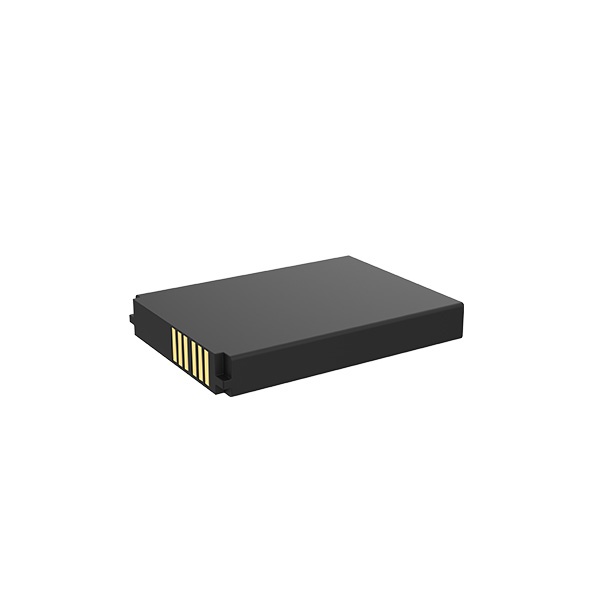

| Battery | Removable 4000mAh |
| Gift Box | |
| Gift Box | Device, Battery, QSG, Adapter, USB cable. |
