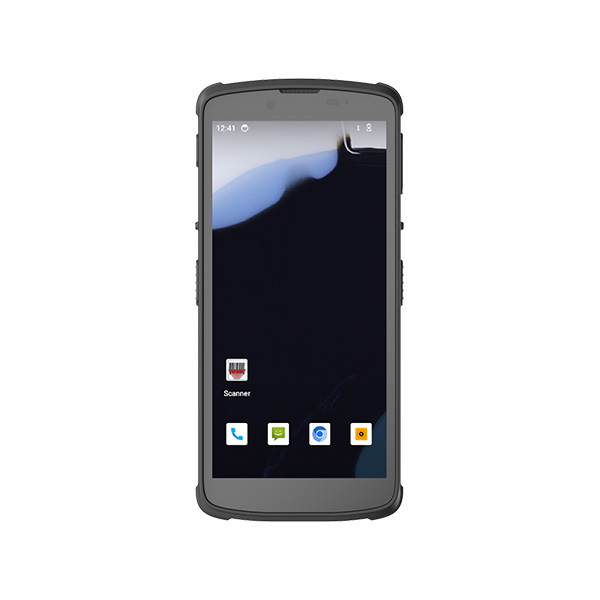

V53 Qualcomm Full Touch PDA

INDUSTRIAL-GRADE FULL-SCREEN SMART PDA

a) Android 14 operating system with Qualcomm octa-core processor up to 2.8 GHz

b) 1MP BSI (Back-Side  Illuminated)  scan engine delivering smooth barcode decoding performance even in low-light environments

c) Antutu benchmark performance up to 400,000 points

d) Equipped with high-speed UFS storage

e) Large 6.0-inch edge-to-edge display protected by second- generation lithium-aluminosilicate reinforced glass

f) Enhanced screen durability with  2–3x  strengthened protection, tested to withstand up to 10,000 drops from 1 meter without screen damage

g) IP67 industrial protection rating — water-resistant and dustproof

h) High-capacity 5100mAh battery, upgradable to 6000mAh, supporting more than 24 hours of continuous full-screen operation

i) Supported by the Mobydata software service platform

APPLICATION AREAS

a) Manufacturing & Industry

b) Transportation & Logistics (T&L)

c) Government

d) Retail

e) Healthcare

f) Mobile Payment



Product specification

PERFORMANCE PARAMETER
CPU CoresOcta Cores
CPU Main FrequencyQualcomm 2.8GHz
Operating SystemAndroid 14.0
MEMORY & STORAGE SPECIFICATION
Memory StyleLPDDR4X
Memory Size4GB
Storage StyleUFS
Storage Size64GB
Extended StorageNano Sim, TF Card Up to 256GB
SCANNING SPECIFICATION
Scan Engine ModelMobydata E3140
Scan Engine Resolution1280 x 800
Scan Engine ShutterGlobal Shutter
Scan Engine IlluminationWhite

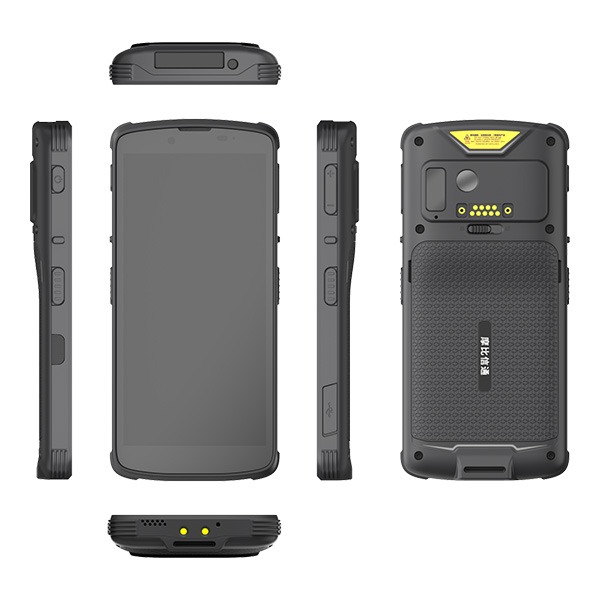

PHYSICAL SPECIFICATION
DimensionLength: 170mm; Width: 78mm; Height: 15mm
Weight290g with battery
LCD & TOUCH SPECIFICATION
LCD StyleIPS & GFF capacitive screen
LCD Size6 inches
LCD ResolutionHigh Definition 1480 x 720
LCD Brightness600 nit
Glove TouchYes
Touch Panel CoverPanda MN1681 with secondary reinforcement technology
Multi-touchYes
Wet TouchYes
CAMERA SPECIFICATION
Rear Camera Resolution13M Pixels
Rear Camera FocusAuto Focus
Rear Camera FlashYes
Front Camera Resolution8M Pixels
Front Camera FocusFixed Focus
KEYPAD SPECIFICATION
ScanLeft & Right
Key RedefinitionSupport K1 Key Redefinition
VolumeUp & Down
PowerYes
POWER SPECIFICATION
Power Adapter Input110~240V 50Hz/60Hz
Power Adapter Output5V 2A (10W)
Power Adapter PlugEuropean Standard Plug
Charging InterfaceUSB Type-C
Data InterfaceUSB Type-C
Communication StandardUSB 3.0
BATTERY SPECIFICATION
Battery CapacityStandard 5100mAh, extra-capacity 6000mAh available
Battery RemovableYes
Standby42 days
Charging0~90% < 3 hours with standard battery Continuous Working
Continuous Working

>18 hours with standard battery with 1 scan / 6s

>24 hours with standard battery with 1 scan / 10s

Battery Life

Remaining 80% capacity after fully charging 500 cycles with standard battery

Storage Temperature-30℃ ~ +70℃
Operation Temperature-25℃ ~ +55℃
Charging Temperature0℃~35℃
Operation Humidity5%~95% non-condensing
ESDContact Discharge: 8K.
Air Discharge: 15K
ENVIRONMENTAL SPECIFICATION
Water & Dust Proof StandardIP67
Tumble

0.5m without rubber boot 1000 hit

0.5m with rubber boot 2000 hits

Dropping

1.5m Steel, 30 drops without rubber boot

1.8m Steel, 60 drops with rubber boot

VOICE SPECIFICATION
Speaker LocationBottom
Speaker Loudness100dB
MicrophoneDouble Mic with Noise Reduction
WIRELESS SPECIFICATION
BluetoothBLE V5.2
NFC13.56MHz Frequency
Wi-Fi802.11 a/b/g/n/ac/ax ready (Wifi 6)
WWANGSM: B3/8; UMTS:B1/B8.
4G LTE: FDD_LTE:B1/3/5/7/8;
TDD_LTE:34/38/39/40/41
GPSGPS/Glonoss/Galileo/Beidou, Assisted GPS
CALTE CAT6,CA B1/3/7/40/41,Downlink 300Mbps
Voice Over LTEYes
SOFTWARE RELATED
Scan Wedge                      Yes
Scan DemoYes
Scan Settings                     Yes
Broadcasting Scan ResultYes
Broadcasting ConfigurableYes
Customization of DesktopYes
OTA UpgradeYes
Easy DeploySupported by scan configuration barcode
Auto Run ApplicationsYes
OCR SupportYes with additional license
Decoding TechnologyYes
Remote ManagementYes with EMM management platforms
ACCESSORY SPECIFICATION (Optional)

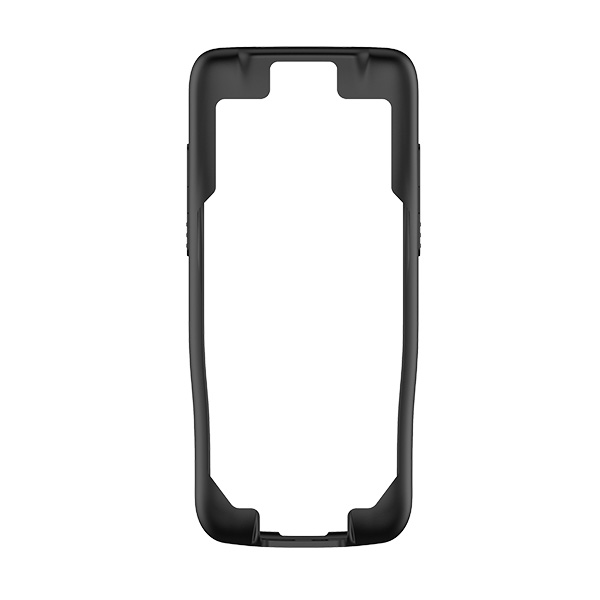

Silicon Rubber CaseYes

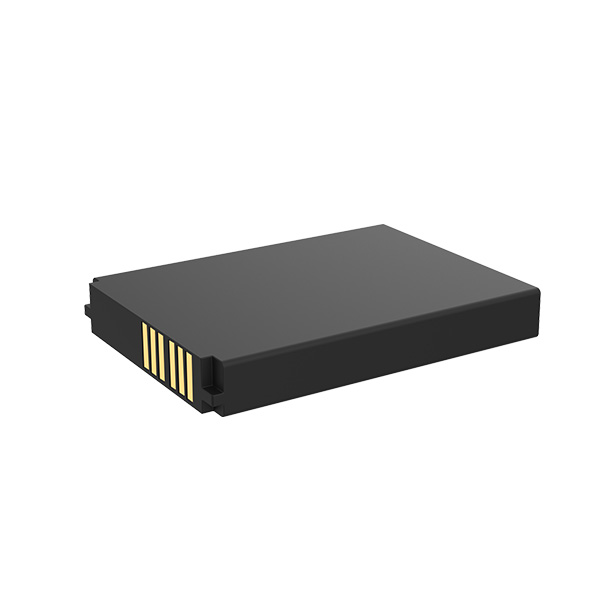

Spare BatteryYes
Hand Grip Yes

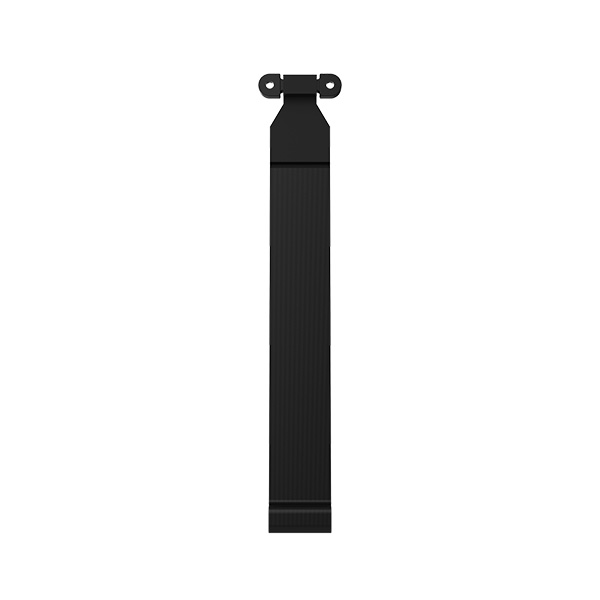

Wrist StrapYes
1 Device + 1 Battery      ChargerYes

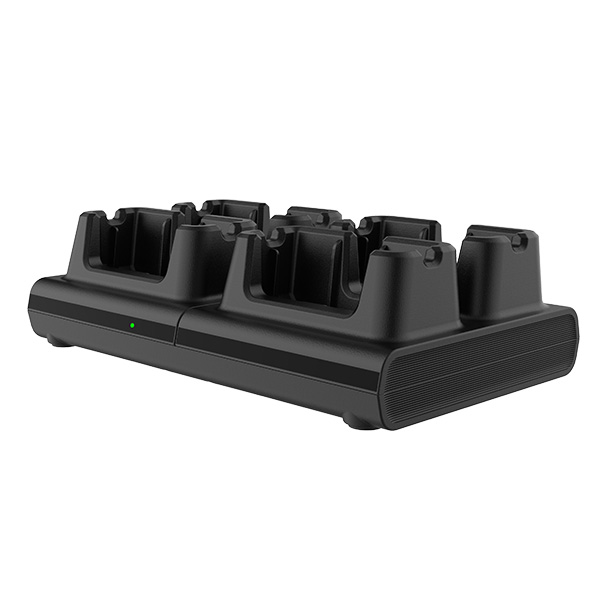

4 Device ChargeYes

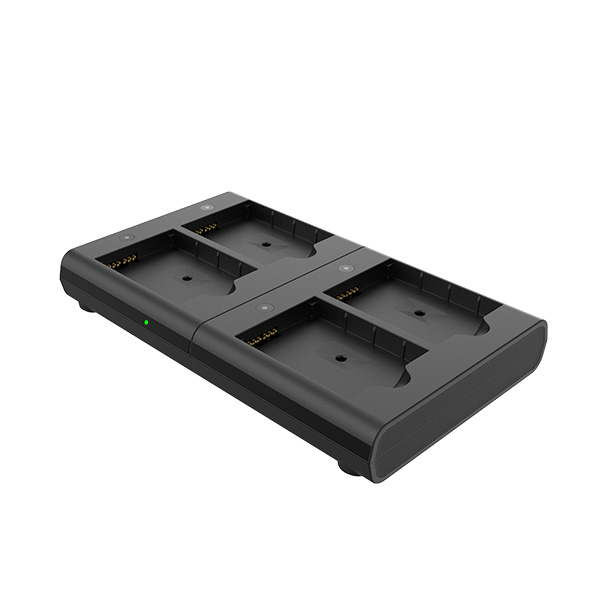

4 Battery ChargerYes
