a) Polarized lighting design, professional recognition of highly reflective surface DPM barcode
b) A new generation of dual camera decoding engine, intelligent three-color lighting
c) Mobydata software service is supported

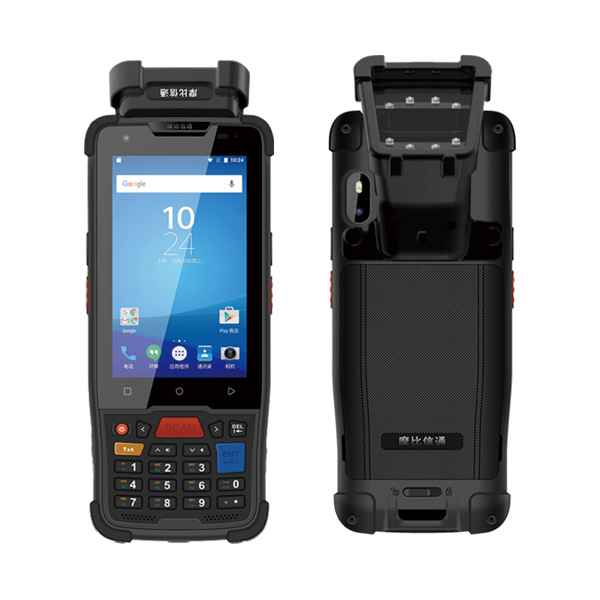

| Product specification | |
| OS | Android 12 |
| CPU | Octa Core, 2.0GHz |
| MEMORY | RAM: 3GB; Flash: 32GB |
| Physical Specifications | |
| Weight | 310g (With battery) |
| Dimension | 188.5mmx73.5mmx57.2mm |
| Keypad | Left/Right Scan Key,Vol+/Vol- Key, Power Key,K1/K2 Function Key |
| Main Parameters | |
| LCD | 4.0 inch, IPS, 800*480 |
| TP | Condenser pen, gloves, wet hands |
| Extend Slot | Nano SIM, TF up to 128GB |
| Camera | Auto focus 13Mega dual flash LED |
| Power and Charging | |
| USB | USB 2.0 OTG: Type-C |
| Adaptor | 12W |
| Battery | Removable 5100mAh,Built-in small battery 80mA 8C |
| Charging | 2.5h |
| Operation | 18h |
| Battery life | 500 cycle> 80% |
| Sensors | |
| Gravity Sensor | Yes |
| Proximity Detector | Yes |
| Photosensitive Sensor | Yes |
| Hall Element | Yes |
| Status Lamp | Yes |
| Voice | |
| Speaker | Double speaker,Greater than 100db |
| Receiver | Yes |
| Mic | Double Mic with Noise Reduction |
| Environmental Specifications | |
| IP | IP67 |
| Drop | 1.5m on concrete, 1 times on each side |
| Tumble | 1000 hits of 0.5m tumble |
| Storage Temperature | -30℃ to 70℃ |
| Operation Temperature | -25°C ~ +55°C |
| Humidity | 5%-95% non-condensing |
| Charging Temp | ‘0°C-35°C |
| ESD | 8K/15K |
| Data Collection | |
| Engine | E33XX |
| Green Spot | Option |
| Symbologies | 1D Codes /2D Codes /Postal Codes |
| Wireless Connectivity | |
| Bluetooth | BLE V5.1 |
| WLAN | 802.11 a/b/g/n/ac, 5G FEM PA |
| GPS | GPS/Glonass/Beidou,Assisted GPS |
| NFC | 13.56MHz NFC |
| WWAN | WWAN ROW GSM: QB UMTS: B1/B2/B5/B8 FDD_LTE:B1/2/3/5/7/8/20/28 TDD_LTE:B34/B38/39/40/41 |
| WWAN NA GSM: QB UMTS: B1/B2/B5/B8 FDD_LTE:B2/B4/B5/B7/B12/B17/B25/B26 | |
| VOLTE | Yes |
| CA | LTE CAT6, CA B1/3/7/40/41，Downlink 300Mbps |
| Gift Box | |
| Device, QSG, Adapter, USB cable，Battery |
| Optional Accessory | |

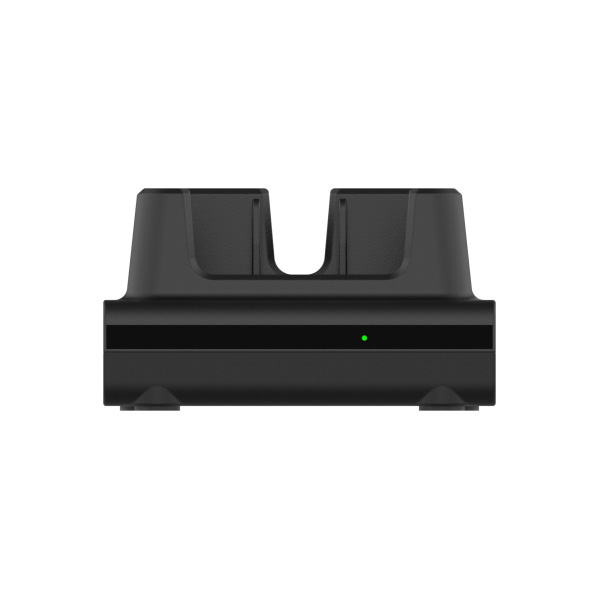

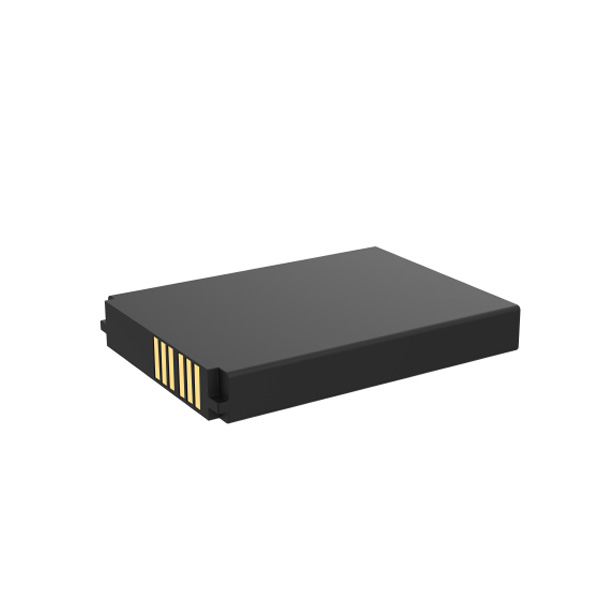

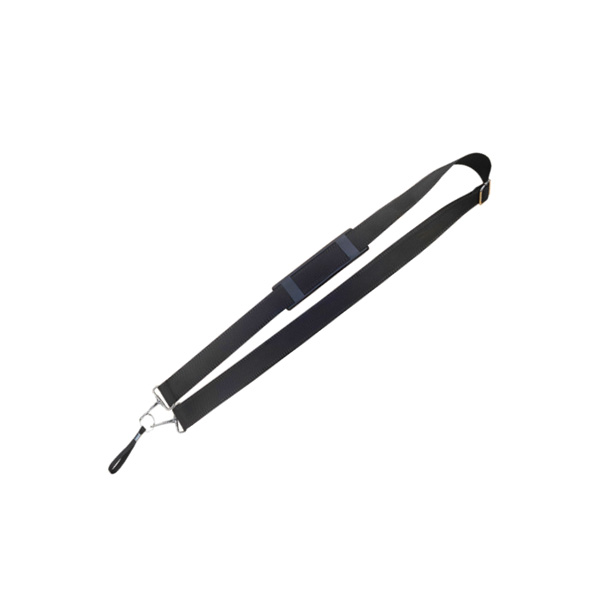

| Single slot device charger, Spare battery, Shoulder belt |
| Warranty | |
| Labor warranty for parts for 12 months |
