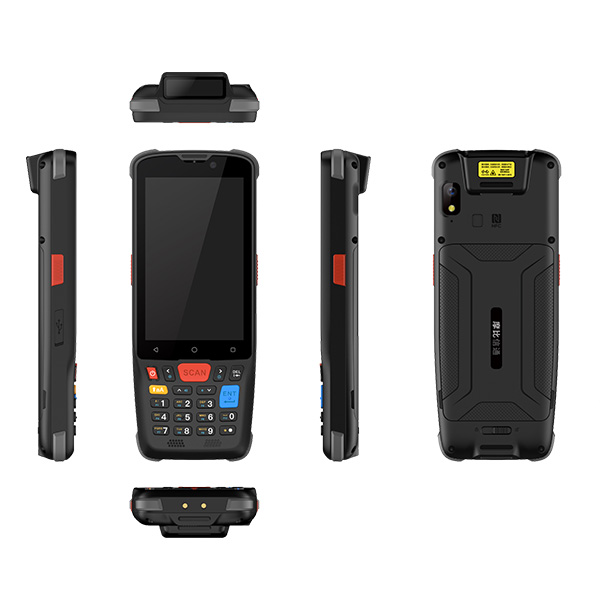

a) Android 14, support 4G communication, custom Wifi roaming performance
b) 1.3 million BSI High sensitivity scan engine
c) 1 meter height falls 1000 times, the LCD is not damaged
d) 5000mAh large capacity replaceable battery, 30 hours of continuous work
e) SCAN and ENT keys that never wear out and fade
f) Antutu scored 220,000 points (Some models)
g)Mobydata software service is supported
| Technical Specifications | |
| OS | Android 14 |
| CPU | Octa Core, 2.0GHz; 2XA75+6xA55 or 4xA53+4xA53 |
| MEMORY | RAM：2 GB/4 GB; Flash：32 GB/64 GB |
| Physical Specifications | |
| Weight | 279g(With battery) |
| Dimension | 165.86mmx67mmx19.22mm |

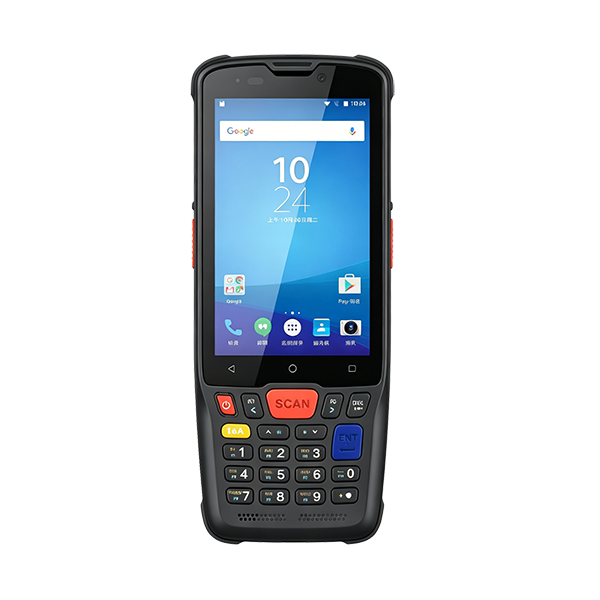

| Keypad | 20-key numeric keyboard Left/right scan Back, home, toggle touch keys |
| Main Parameters | |
| LCD | 4.0 inch, 800*480 |
| TP | IPS GFF capacitive screen, multi-touch |
| Extend Slot | SIM card slot: Single card, Nano SIM*1+TF*1 |
| SD card slot: MicroSD, up to 256GB | |
| Main camera | Auto focus 8Mega, flash |
| Front camera | Fixed focal length, 5Mega (option) |
| Power and Charging | |
| USB | USB 2.0 Type-C charging data transmission |
| Adapter | 5V2A 100~240V AC 50/60HZ, Plug: National standard |

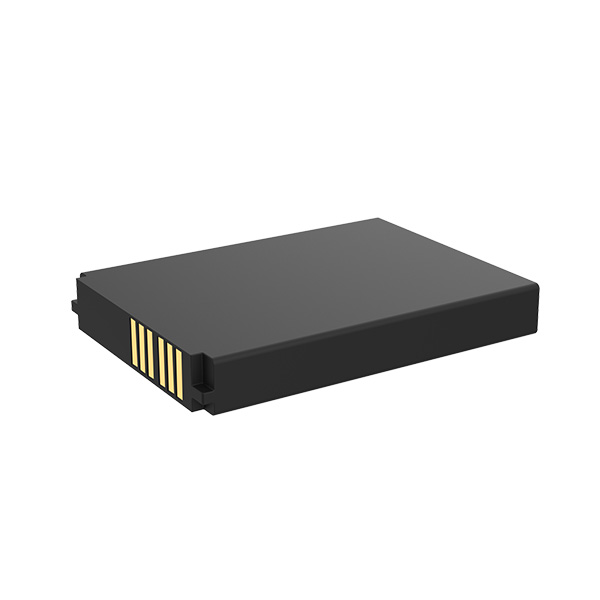

| Battery | 5000 mAh min, Replaceable |
| Charging | <3.5h |
| Operation | >30 hours |
| Battery life | 500 cycle> 80% |
| Sensors | |
| Gravity sensor | Option |
| Proximity Sensor | Option |
| Photosensitive sensor | Option |
| Hall Sensor | Option |
| status lamp | Yes |
| Voice | |
| Speaker | Min 100db |
| Receiver | Option |
| Mic | Double Mic with Noise Reduction |
| Environment | |
| IP | IP65 |
| Drop | 1.5m steel floor fell 30 times, 1.8m steel floor fell 60 times (with silicone sleeve) |
| Tumble | 0.5m steel plate falls 2000 times, 0.5m steel plate roller 3000 times (with silicone sleeve) |
| Storage Temperature | -30C to 70C |
| Operation Temperature | -25°C ~ +55°C |
| Humidity | 5%-95% non-condensing |
| Charging Temp | 0°C -35°C |
| ESD | 8K/15K |
| Data Collection | |
| Engine | E31XX/E34XX |
| Green Spot | Option |
| Symbologies | 1D Codes /2D Codes /Postal Codes |
| Wireless | |
| Bluetooth | BLE V5.0 |
| WLAN | 802.11.a/b/g/n/ac WiFi dual band radio; IPv4； IPv6 |
| GPS | GPS/Glonass/Galileo/Beidou,Assisted GPS |
| NFC | Option |
| WWAN | 2G/3G/4G full Netcom |
| VOLTE | Yes |
| CA | LTE CAT6, CA B1/3/7/40/41，Downlink 300Mbps |
| Gift Box | |
| Device, QSG, Adapter, USB cable，Battery |
| Optional Accessory | |

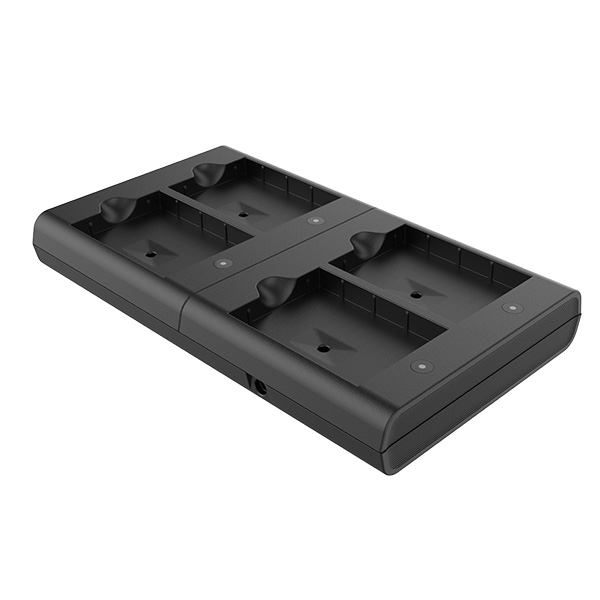

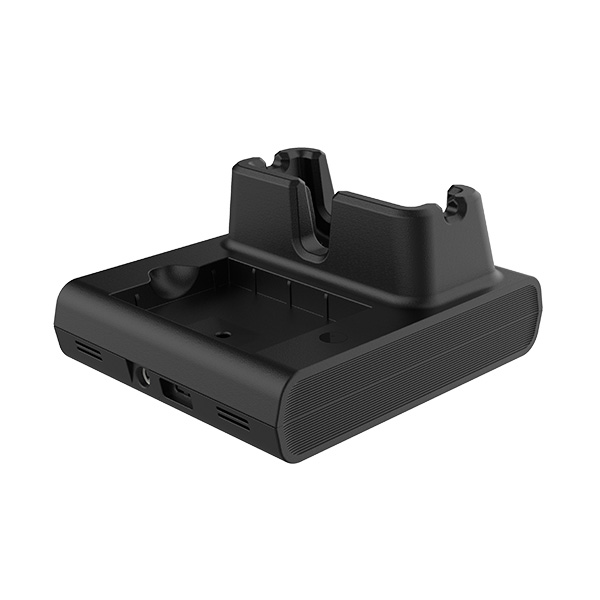

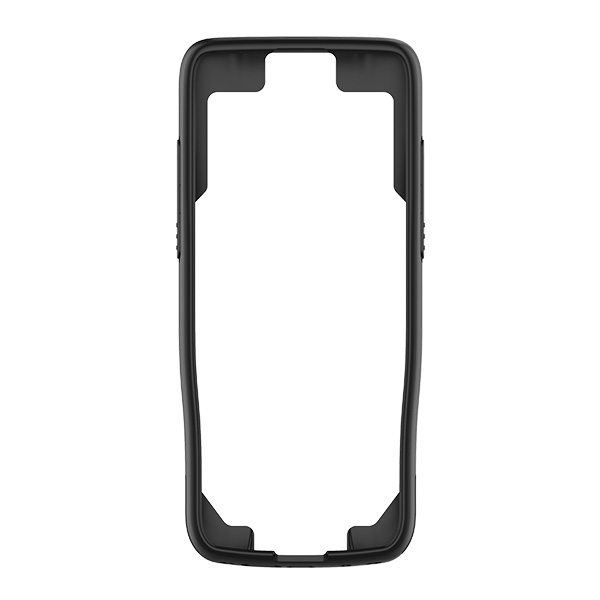

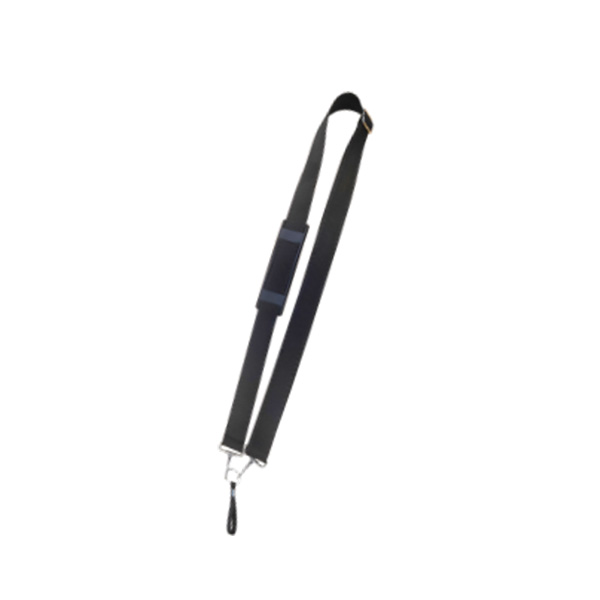

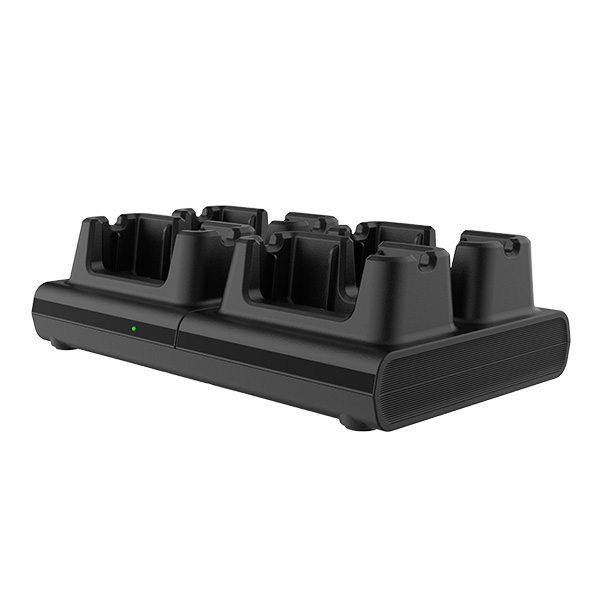

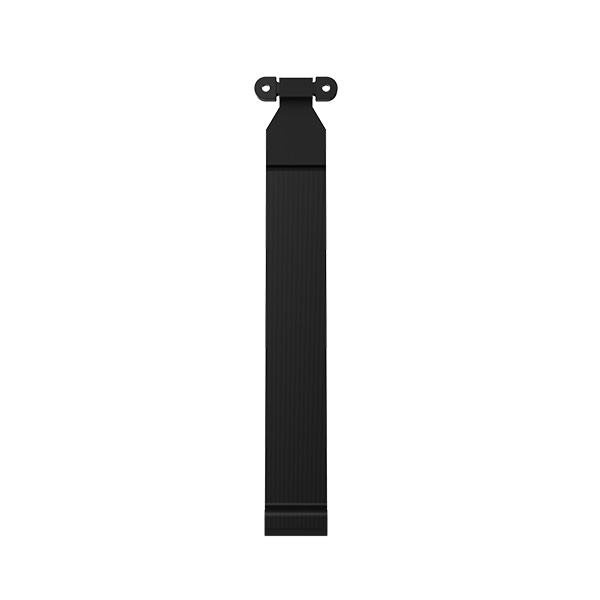

| Single host and battery charger, 4-slot device charger, 4 battery charger, Spare battery, silicon rubber case, wrist strap, Shoulder belt |
| Warranty | |
| Labor warranty for parts for 12 months |
